12" x 62.97 Km Approx Laying, terminal & Associated works from SV- 07S (Ch. 178.4 Km approx.) to Consumer Nalco (Ch. 62.97 Km approx.) Including Station Piping works for Dispatch station at SV-07S STATE: ODISHA
PIMS is to provide a current status report in respect of physical parts (generally pipes) of the pipeline. Items included in addition to pipes are bends, valves, assemblies, joints and tees.
During the lifetime of the GAIL pipelines, PIMS will keep track of the information related to the constituent parts of the GAIL pipelines (Pipes, Bends, Valves, Assemblies, Joints, Tees, Reducers) readily accessible.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
Business ObjectiveEnsure an increased commitment at all levels in the organisation

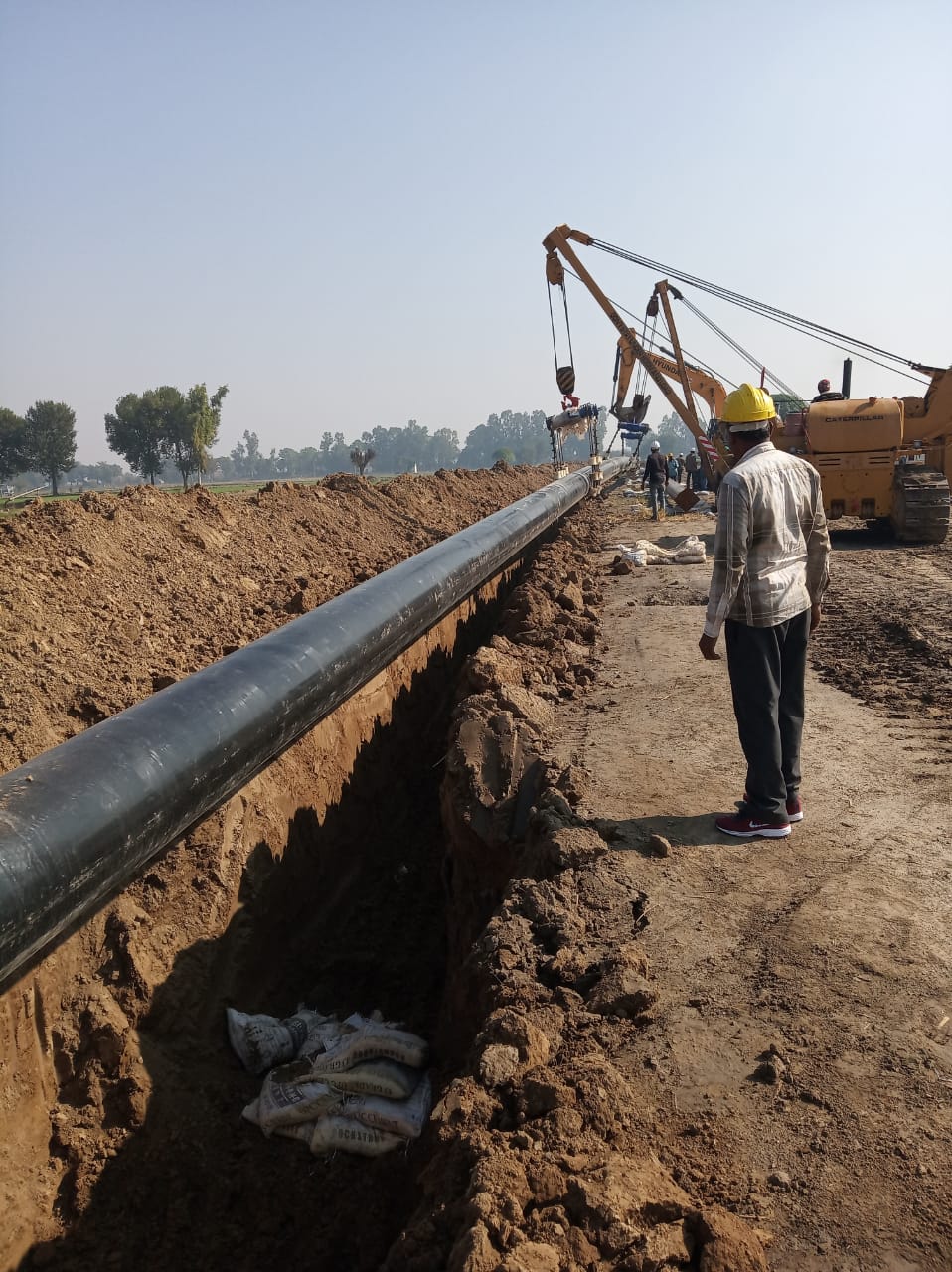

LAYING & CONSTRUCTION OF STEEL GAS PIPELINE AND TERMINALS
Project Name : Laying and Construction of Natural Gas Pipeline and Terminals Along with Associated Facilities for Srikakulam-Angul Pipeline Project (PART – B)
| Project Name | : | Laying and Construction of Natural Gas Pipeline and Terminals Along with Associated Facilities for Srikakulam-Angul Pipeline Project (PART – B) | |
| Project Length | : | 322 Km | |
| Material Specification | : | API 5L Gr. X-70, 3 LPE, PSL-2 | |
| Diameter | : | 18” & 12" | |
| Wall Thickness (mm) | : | 6.4, 7.1,8.1 & 9.60 | |
| Coating | : | : 3LPE | |
| Client | : | GAIL INDIA LIMITED | |
| Consultant | : | M/S MECON LIMITED (MECON) |  |
| Contractor | Section 4 | ENPROCON ENTERPRISE LIMITED. |  |
| Contractor | Section 1 | M/S Pratham EPC Projects Pvt Ltd. |  |
| Contractor | Section -II | M/s Likhitha Infratructure Ltd. |  |
| PIMS | : | Unistal Systems Pvt. Ltd. |  |
| Start Date | : | 20.07.2022 | |
| End Date | : | 19.05.2023 |
| Spread | Section | Chainage From | Chainage To | Length |
|---|---|---|---|---|
| Part B | SEC-IV | 00 KM | 47.40KM | 47.407KM |
| Part B | SEC-IV | 00 KM | 62.97KM | 62.97KM |
| Part B | SEC-IV | 47.250 KM | 190.779 KM | 143.529 KM |
�
Services By Unistal System Pvt. Ltd.
